Product Description
Barnes 2SEV1094L Submersible Sewage Ejector Pump Specifications
- BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
- HORSEPOWER: 1.0 HP
- VOLTAGE: 200/230 V
- PHASE: 3 Ph
- HERTZ: 60 Hz
- RPM: 1750 RPM
- FULL LOAD AMPS: 5.3/5.1
- DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical, Bolt-On Flange
- SOLIDS HANDLING: 2.0" Spherical Solids
- CORD LENGTH: 20'
- CORD SIZE & TYPE: 14/3, SOW
- MAX HEAD: 37'
- MAX FLOW RATE: 185 GPM
- SWITCH TYPE: Manual
- IMPELLER: Vortex, Open with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3

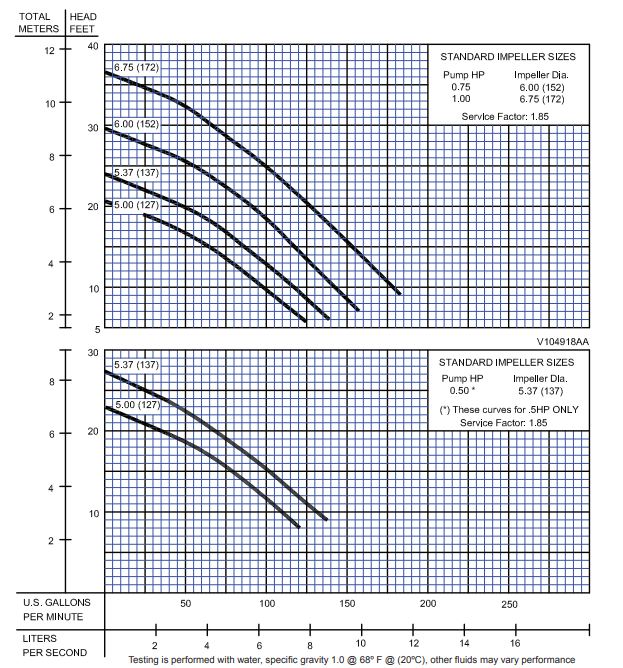

Barnes 2SEV-L Series Submersible Sewage Ejector Pump Performance Curve
