Product Description
Barnes SE754L Submersible Sewage Ejector Pump Specifications
- BODY CONSTRUCTION: Cast Iron ASTM-48, Class 30
- HORSEPOWER: 0.75 HP
- VOLTAGE: 575 V
- PHASE: 3 Ph
- HERTZ: 60 Hz
- RPM: 1750 RPM
- FULL LOAD AMPS: 1.5
- DISCHARGE PIPE SIZE: 2.0" NPT, Female, Vertical, Bolt-On Flange
- SOLIDS HANDLING: 2.0" Spherical Solids
- CORD LENGTH: 20'
- CORD SIZE & TYPE: 14/4, SOW
- MAX HEAD: 30'
- MAX FLOW RATE: 180 GPM
- SWITCH TYPE: Manual
- IMPELLER: 2 Vane, Open with Pump Out Vanes on Back Side. Dynamically Balanced, ISO G6.3

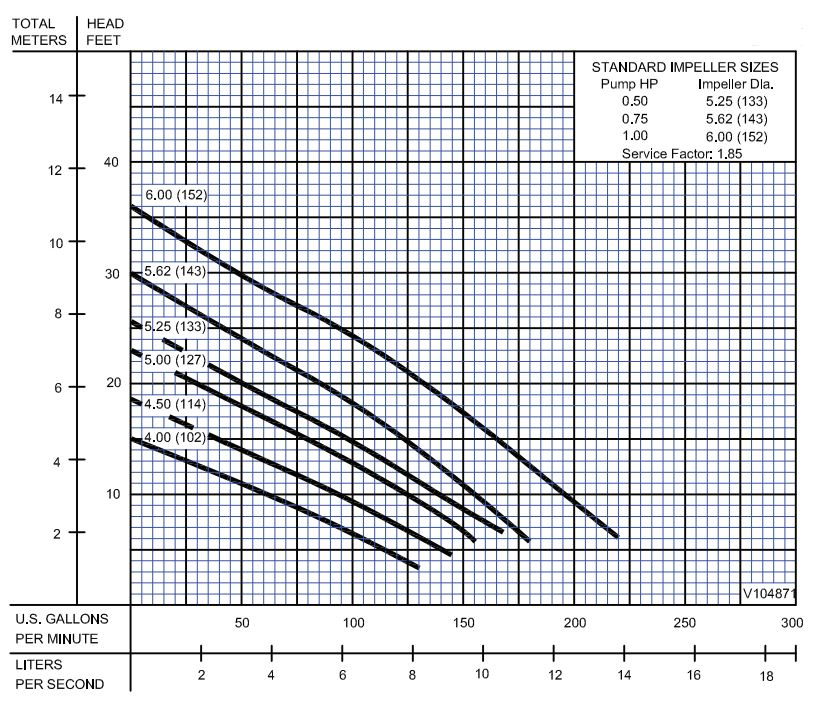

Barnes SE-L Series Submersible Sewage Ejector Pump Performance Curve
