Product Description
Barnes SP33AX Submersible Effluent Pump Specifications
- BODY CONSTRUCTION: Cast Iron
- HORSEPOWER: 0.33 HP
- VOLTAGE: 120 V
- PHASE: 1 Ph
- HERTZ: 60 Hz
- RPM: 3450 RPM
- FULL LOAD AMPS: 5.8
- DISCHARGE PIPE SIZE: 1.5" NPT, Female, Vertical
- SOLIDS HANDLING: 1/2" Spherical Solids
- CORD LENGTH: 20'
- CORD SIZE & TYPE: 18/3, SJTOW
- MAX HEAD: 30'
- MAX FLOW RATE: 50 GPM
- SWITCH TYPE: Wide Angle, Mechanical, 10ft Cord
- IMPELLER: 10 Vane Vortex, with Pump Out Vanes on Back Side, Balanced, ISO G6.3

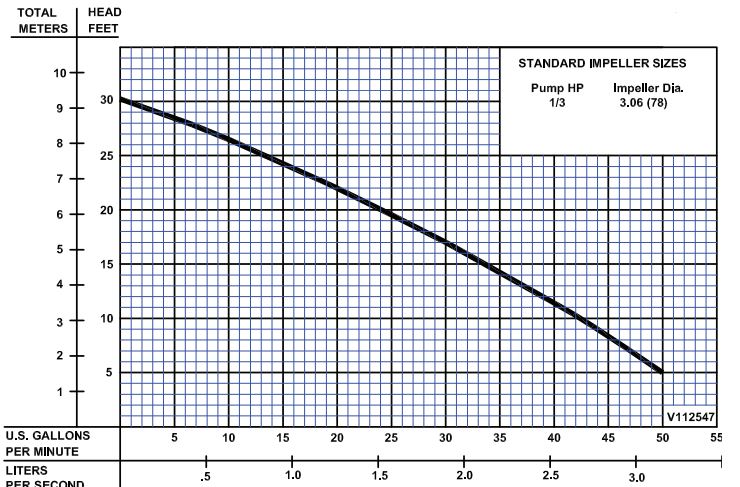

Barnes SP Series Submersible Effluent Pump Performance Curve
