Product Description
Overview

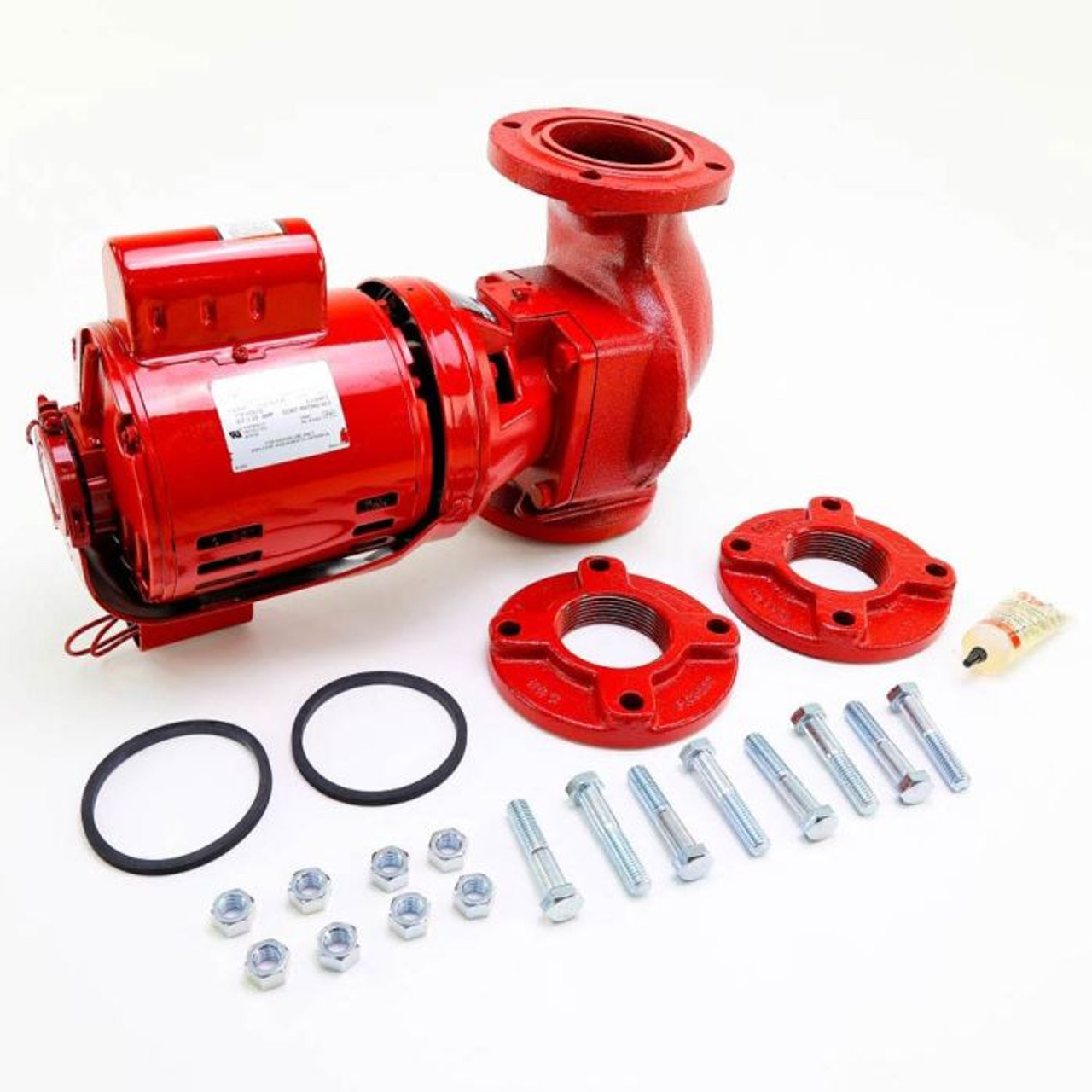

Series 2-1/2 cast iron pumps are dependable, in-line booster pumps intended to pump water through closed loop systems for heating and cooling. The Series 2-1/2 features a three-piece design, which includes a motor, bearing assembly and volute. This innovative design provides for easy field service as the bearings, shaft and seal are all housed within the bearing assembly. That assembly can then be easily repaired or entirely replaced without disturbing the other components of your pump. The Series 2-1/2's resilient motor mounting is another feature unique to Bell & Gossett. The mounting, combined with spring-loaded couplers, means your pump will run quietly and efficiently. The Series 2-1/2 features a plastic impeller. A tube of Bell & Gossett oil along with flange gaskets and mounting hardware are included with the pump. A pair of 2-1/2" flanges are also included.
| Brand | Bell & Gossett |
|---|---|
| MPN | 102218 |
| Pump Type | Circulator |
| B&G Series | Series 2-1/2" |
| B&G Model | 2-1/2 IB |
| Model | 2-1/2-IB |
| Pump Construction | Iron Body-IB (Stl Imp) |
| Pump Class | Booster |
| Pump Mounting | In-Line |
| Pump Connection Size | 2-1/2" |
| Pump Connection | Flanged |
| Flanges Included | Yes |
| Motor HP | 1/4 HP |
| Motor RPM | 1725 RPM |
| Motor Voltage | 115V |
| Motor Phase | 1 Ph |
| Motor Hertz | 60 Hz |
| Motor Enclosure | ODP |
| Motor Frame Size | Power Pack |
| Shaft Size | 1/2" |
| Impeller Size | 3-7/8" |
| Working Pressure | 125 psi |
| Max Temp | 225°F |
| Potable Water | No |
| UPC | 683328022185 |
| Weight | 54.62 |
