Product Description
Overview

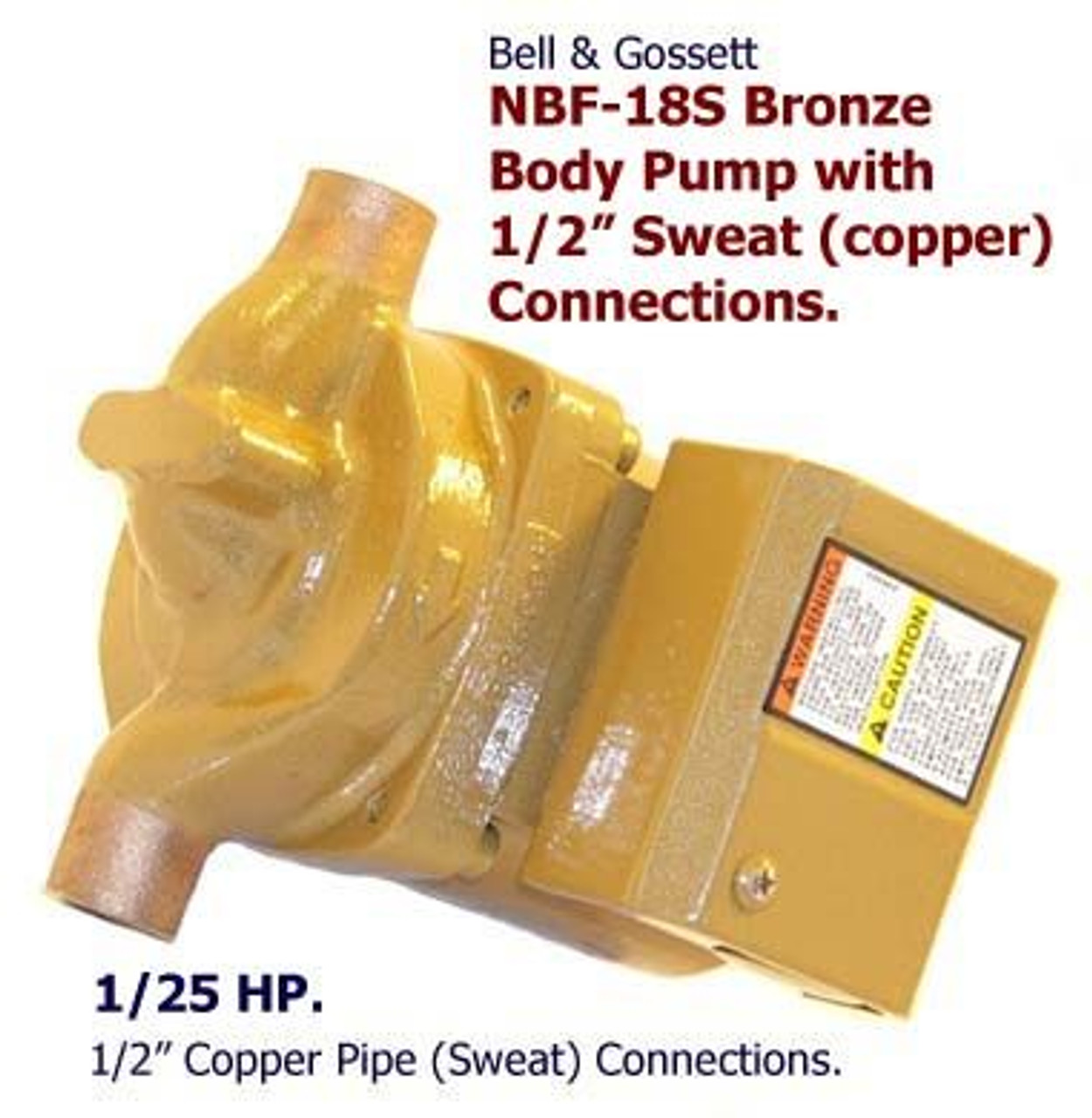

Series NBF bronze body pumps are dependable, in-line wet rotor circulator pumps specifically intended to pump potable, domestic water from hot water heater tanks to areas such as bathrooms and kitchens. The Series NRF features a maintenance-free system, with a self-cleaning particle shield protects the shaft and bearings from system start-up debris. The unique DuraGlide bearing system also contributes to trouble-free start-ups. A powerful Red Fox motor offers high starting torque, ensuring consistent start-up season after season. The Series NBF's stabilized heat-resistant, non-metallic impeller with a closed design improves overall operating efficiency. Mounting hardware and flange gaskets are included with the pump. Sweat connections are available separately in 1/2".
| Brand | Bell & Gossett |
|---|---|
| MPN | 103316LF |
| Pump Type | Circulator |
| B&G Series | Series NBF |
| Model | NBF-18S |
| Pump Construction | Bronze-BNFI (Non-Ferrous Imp) |
| Pump Class | Booster |
| Pump Mounting | In-Line |
| Pump Connection Size | 1/2" |
| Pump Connection | Sweat |
| Flanges Included | N/A |
| Motor HP | 1/25 HP |
| Motor RPM | 3000 RPM |
| Motor Voltage | 115V |
| Motor Phase | 1 Ph |
| Motor Hertz | 60 Hz |
| Max Temp | 230°F |
| Potable Water | Yes |
| Weight | 9.00 |
