Product Description
Bell & Gossett Series PL Bronze Body Circulator Pump – Model PL-50B
The Bell & Gossett Series PL bronze body circulator pump is a high-performance, in-line wet rotor pump designed to efficiently circulate potable, domestic water from hot water heater tanks to areas such as bathrooms and kitchens. Perfect for residential and light commercial applications, this pump offers exceptional reliability and longevity.
Key Features of the Series PL Circulator Pump:
- Maintenance-Free Operation: Features a self-cleaning particle shield that protects the shaft and bearings from debris during system start-up, ensuring long-term trouble-free performance.
- Advanced Bearing System: The unique XL11 precision-crafted bearing system contributes to smooth, efficient start-ups and continuous operation.
- Increased Efficiency: The dry-motor design provides 25% greater efficiency compared to traditional wet rotor pumps. Unlike wet rotors, the Series PL circulator does not require bypassing system water through the motor to lubricate and cool bearings, improving overall efficiency.
- Durable and Long-Lasting Design: The advanced close-coupled design enhances both pump life and operating efficiency, making the Series PL ideal for demanding conditions.
- Heat-Resistant Impeller: The stabilized, heat-resistant, non-metallic impeller with a closed design optimizes operating efficiency and ensures reliable performance, even in difficult water conditions and extreme temperatures.
- Versatile Water Handling: Suitable for a wide range of temperatures and water conditions, the Series PL circulator pump provides versatile, high-efficiency operation.

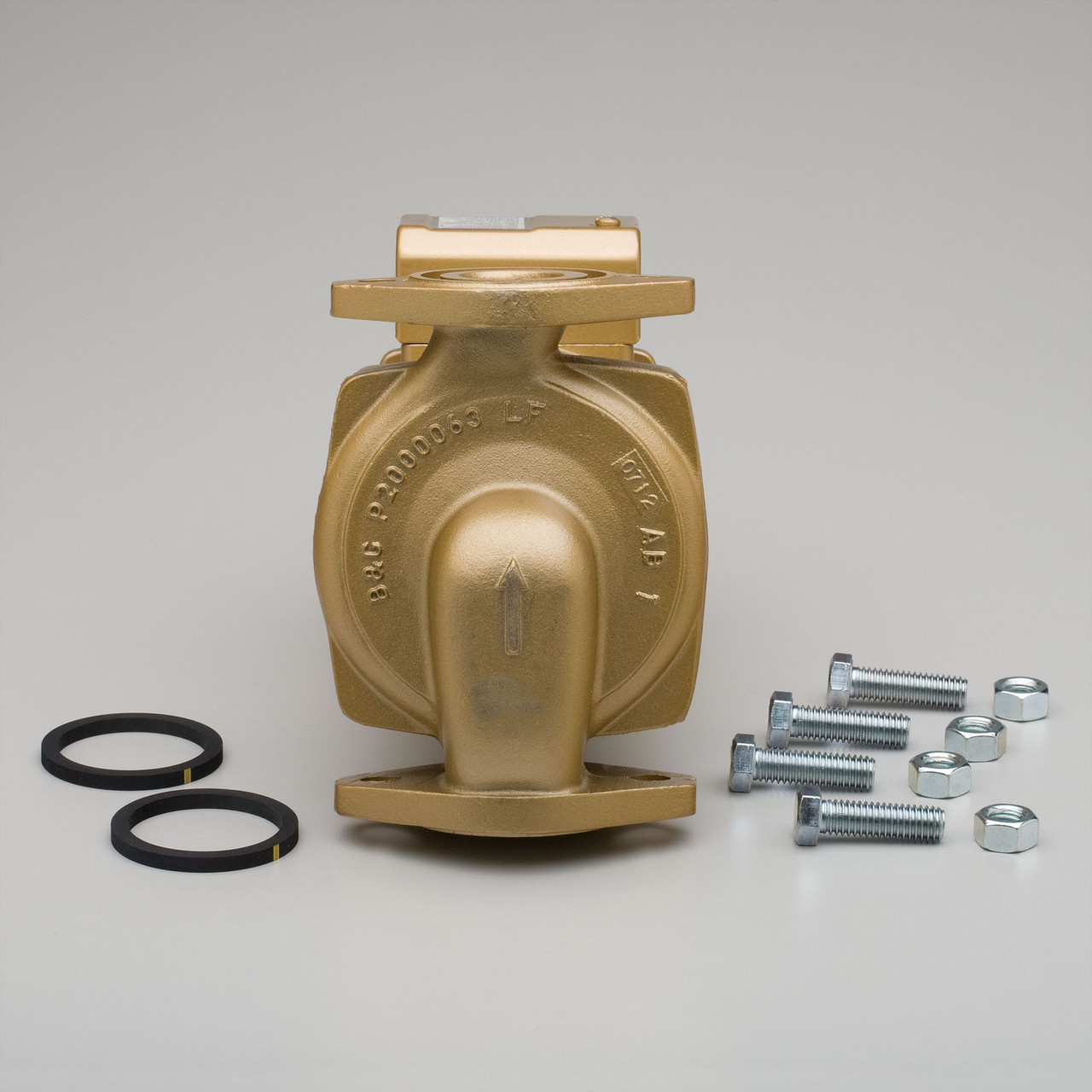

- Mounting Hardware Included: Comes with necessary mounting hardware and flange gaskets. Flanges are available separately in 1", 1-1/4", and 1-1/2" sizes.
Technical Specifications:
- Brand: Bell & Gossett
- Model: PL-50B
- Pump Type: Circulator
- Pump Construction: Bronze-BNFI (Non-Ferrous Imp)
- Pump Class: Booster
- Mounting Type: In-Line
- Pump Connection Size: 1", 1-1/4", 1-1/2" (Flanged)
- Motor Horsepower: 1/6 HP
- Motor RPM: 3300 RPM
- Motor Voltage: 115V
- Motor Phase: 1 Ph
- Motor Hertz: 60 Hz
- Motor Enclosure: ODP
- Motor Frame Size: Power Pack
- Working Pressure: 150 psi
- Maximum Temperature: 225°F
- Potable Water Approved: Yes
- UPC: 683328223100
- Weight: 16 lbs
The Bell & Gossett Series PL circulator pump is engineered to provide unmatched performance in demanding residential and commercial applications. Its robust design, maintenance-free system, and high-efficiency operation make it the ideal choice for efficient and reliable potable water circulation.
